Backups in sharded clusters

For PBM v1.0 (only)

Before running pbm backup on a cluster, stop the balancer.

In sharded clusters, one of the pbm-agent processes for every shard and the config server replica set writes backup snapshots into the remote backup storage directly. For logical backups, pbm-agents also write oplog slices. To learn more about oplog slicing, see Point-in-Time Recovery.

The mongos nodes are not involved in the backup process.

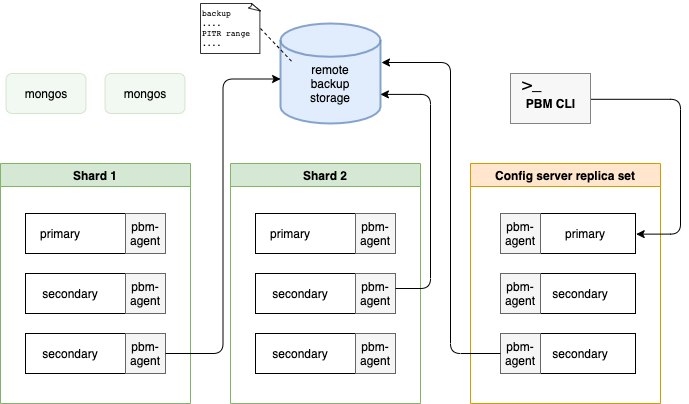

The following diagram illustrates the backup flow.


Important

If you reshard a collection in MongoDB 5.0 and higher versions or unshard a collection in MongoDB 8.0 and higher versions, make a fresh backup to prevent data inconsistency and restore failure.
